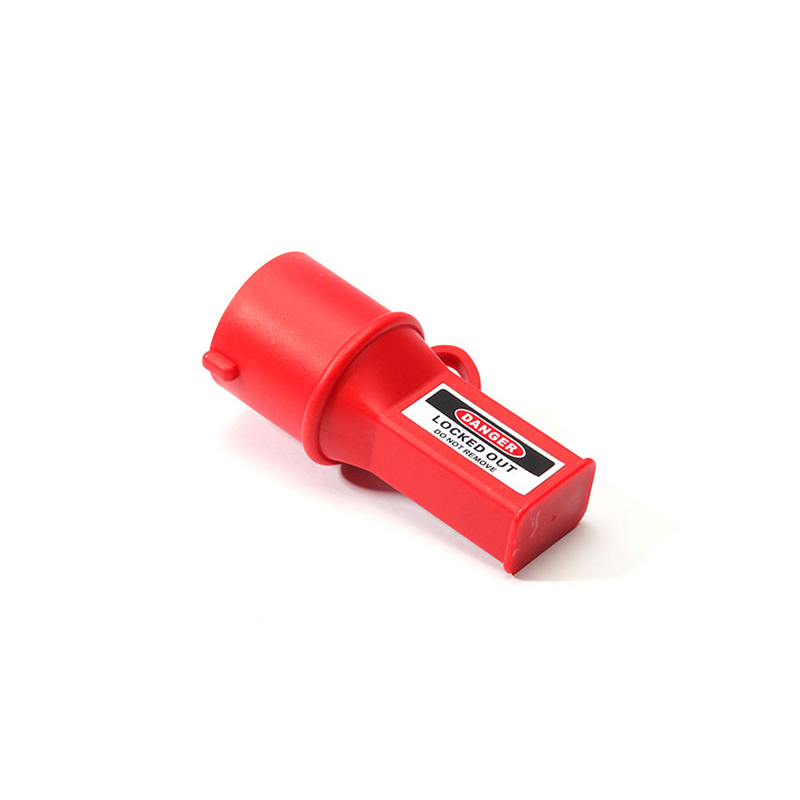

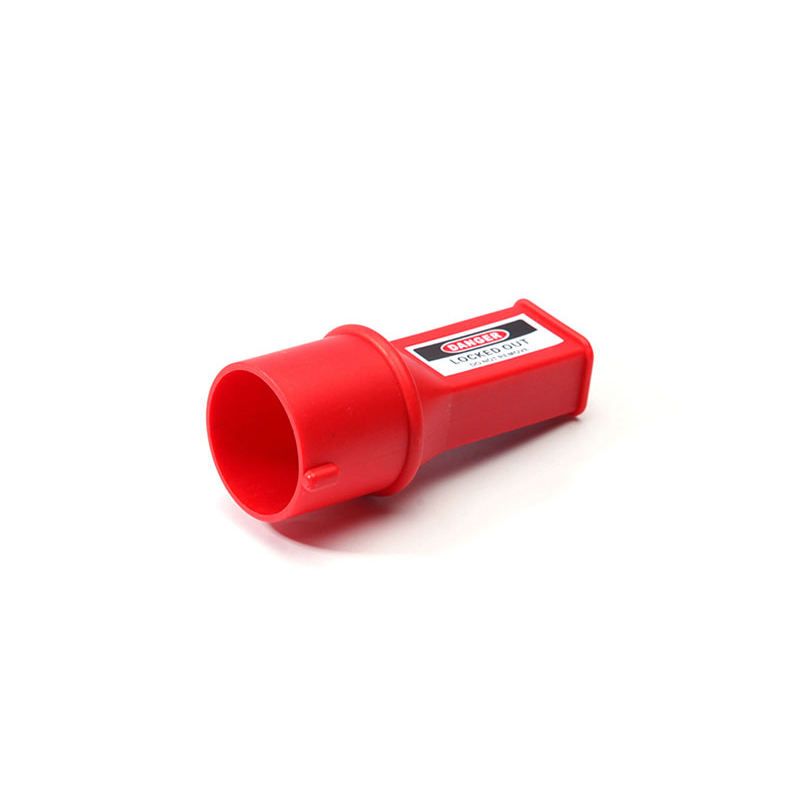

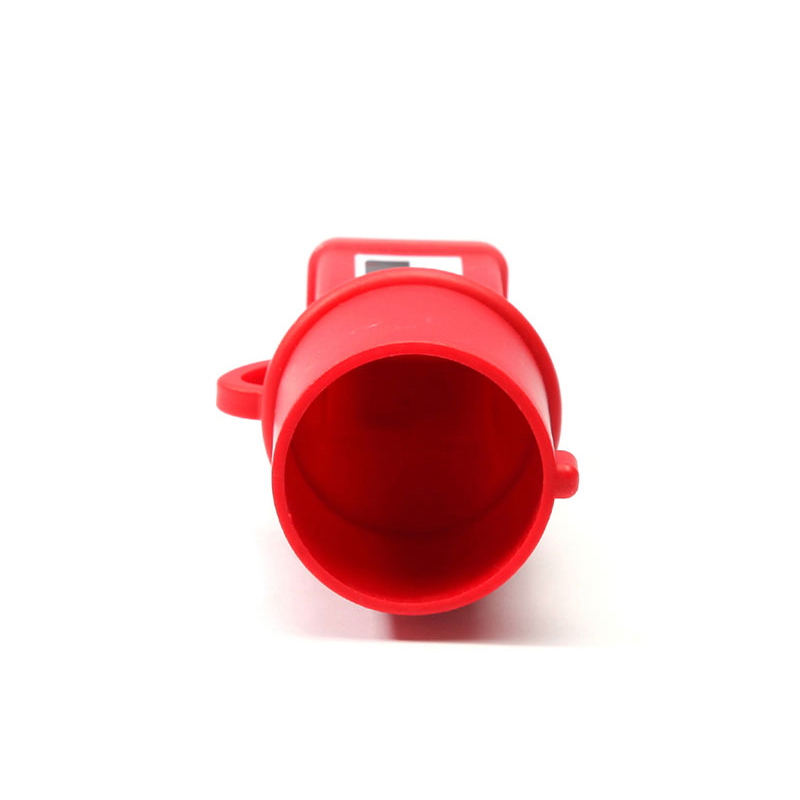

EP-D45 Channel Plug Guard Lockout

Made from PP material

With hasp to lock industrial waterproof socket.

Can accommodate several padlocks to lock it at the same time with hasp.

Inquiry

Download

Product Description
Specification Parameters
Product Features
Related Products

Product Description

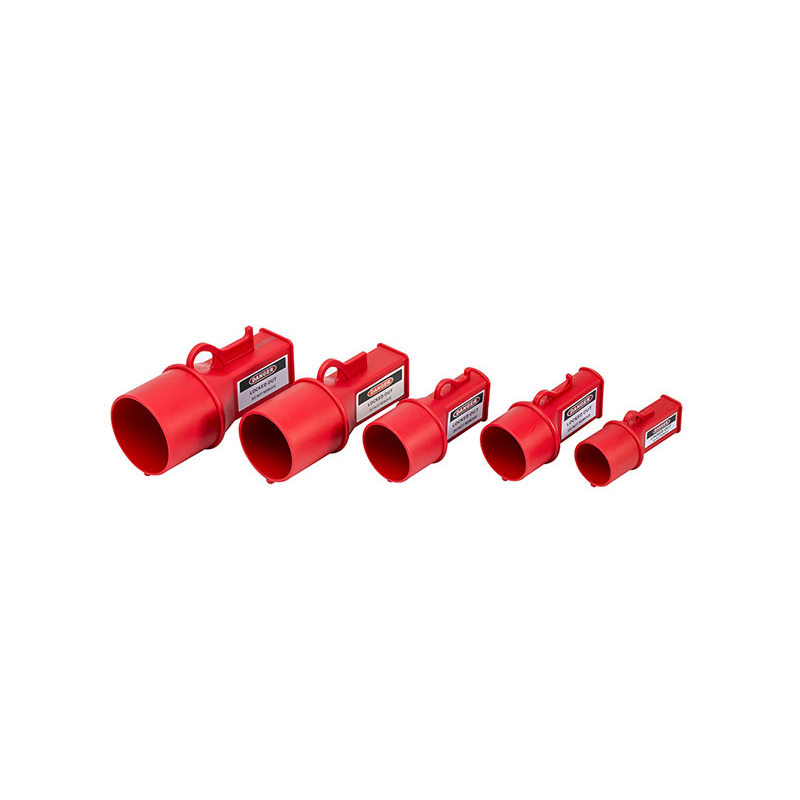

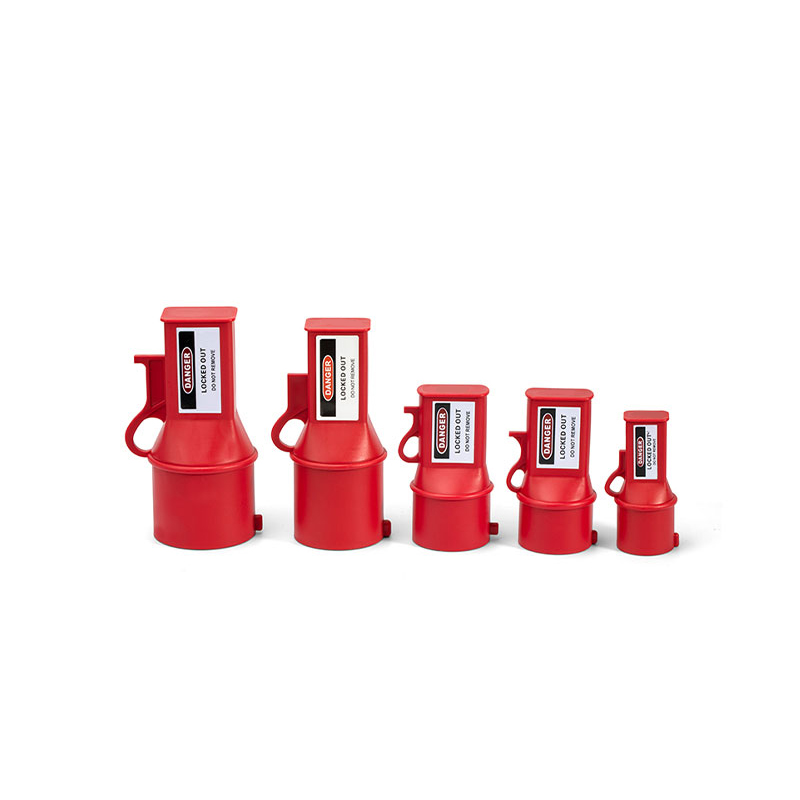

Model	Description
EP-D46-1	Suitable for small industrial plugs,Lock body hole size: inner diameter 40mm, outer diameter 44mm;
EP-D46-2	Suitable for small industrial plugs,Lock body hole size: inner diameter 52mm, outer diameter 56mm;
EP-D46-3	Suitable for medium-sized industrial plugs,Lock body hole size: inner diameter 55mm, outer diameter 59mm;
EP-D46-4	Suitable for medium-sized industrial plugs,Lock body hole size: inner diameter 63mm, outer diameter 67mm;
EP-D46-5	Suitable for large industrial plugs,Lock body hole size: inner diameter 73mm, outer diameter 77mm;

Specification Parameters

下载 (6)

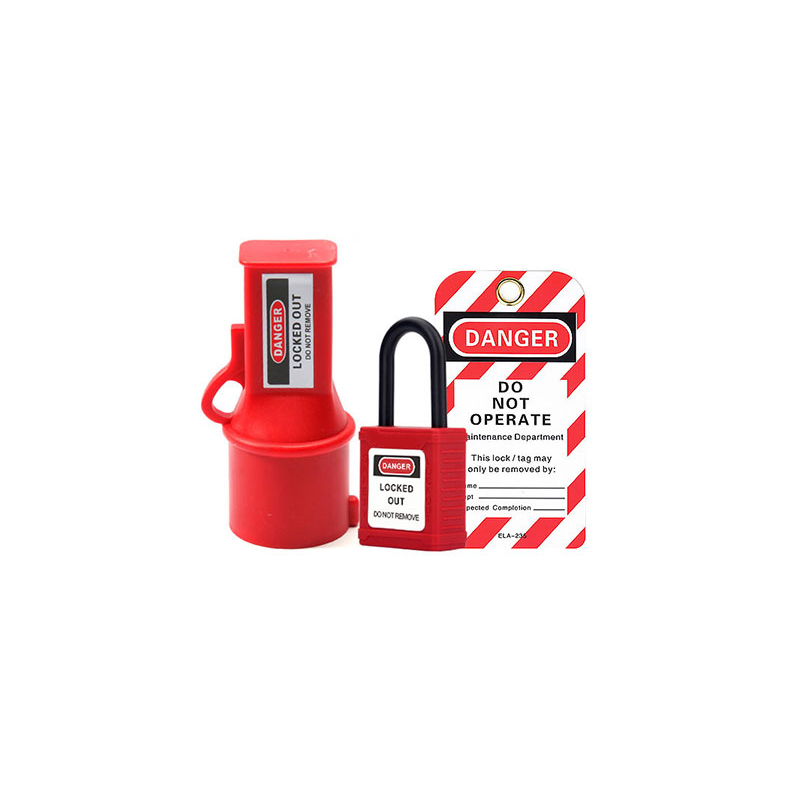

Product Features

This practical device can be mounted on any BS4343 plug or appliance inlet rated in excess of 50V and secured in place by a padlock.

This device fits onto the rim of the male socket, locking in place and preventing insertion into a socket.

Fits standard plug sizes from 16a though to 125a

Provides a simple means of effectively isolating access to plugs and adapters by stopping the plug from being inserted into an energy source.

The plug-guard is ideal for maintenance personnel or anyone who wishes to stop accidental power connection whilst working on machinery in remote locations or during long term servicing.

It can also be used to prevent usage of electrical equipment by unauthorised personnel.
